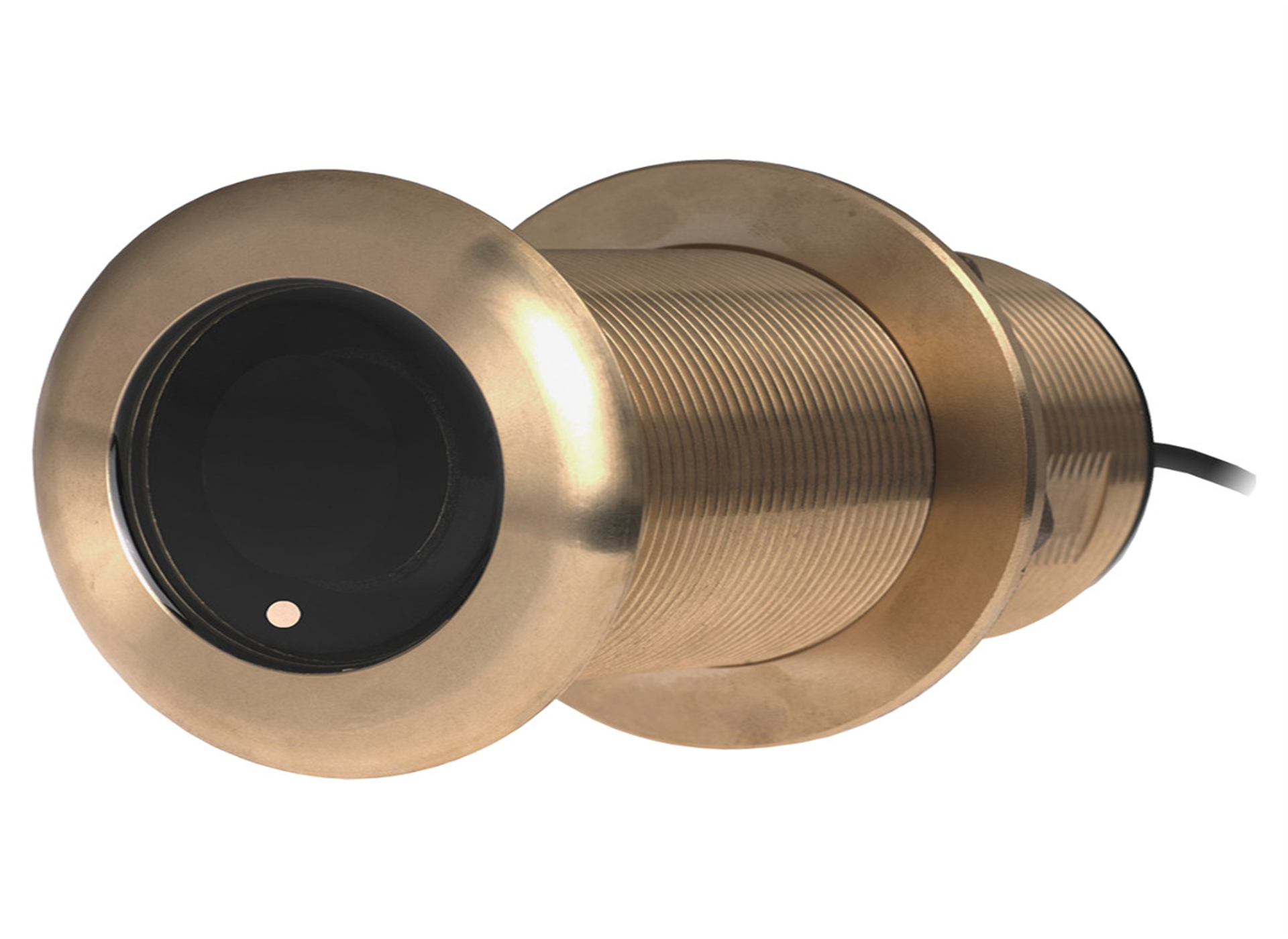

B60 Traditional/CW Tilted Element™ Thru-hull
Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings. Available in two Tilted Element models: Fixed 20° tilted version for 16 to 24° hull deadrise angles Fixed 12° tilted version for 8 to 15° hull deadrise angles
FEATURES AND BENEFITS
Depth and fast-response water temperature sensing
600 W of power
Dual-frequency element:
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Perfect for center-console or trailered boats
Low-profile bronze housing extends only 5 mm (3/16") outside the hull
No effect on your boat’s running performance
Bronze housing for fiberglass or wood hull
Also available in a stainless steel housing (SS60) for use with all hull materials
