LUETZE’s AirSTREAM wiring system is designed to optimize climate conditions inside control cabinets. As components become more compact and generate more heat, traditional cooling methods often fail to prevent hotspots. The AirSTREAM system ensures even air distribution, reducing thermal loss and preventing localized overheating. This results in fewer failures, less downtime, and extended component life.

The LUETZE AirBLOWER improves climate control in control cabinets by eliminating air layers and ensuring even temperature distribution. When used with an AirSTREAM frame, cooling efficiency increases significantly, with tests showing temperature reductions of up to 10 K. Consuming far less energy than active cooling systems, the AirBLOWER can be operated only when needed, providing an energy-efficient solution for thermal management.

The LUETZE AirSTREAM wiring system is engineered with a modern design principle, offering both construction and operational benefits for control cabinet installation. Its high-strength aluminium frames integrate wiring trunking directly into the frame, allowing compact installation of multiple components in tight spaces. Wiring is comfortably installed from the front, and the open design ensures continuous airflow around components, efficiently removing heat and improving cooling performance.

The LUETZE LION SAFE CCU (Compact Control Unit) is a vehicle control solution for transportation applications, supporting functions up to SIL2. Featuring a dual-process architecture, it separates secure and non-secure functions, enabling program code to run and be configured in parallel without interference. The LION SAFE CCU complies with key international railway standards including EN50126, EN50128, EN50129, and EN50155, ensuring safety, reliability, and performance in demanding environments.

The LUETZE LEOS Lite Managed Ethernet Switch (Part No. 804201) is an 8-port IP54-rated managed switch designed for use in rail vehicles. With robust hardware (Rev. D) and software version 1.0.5, it ensures reliable network performance in demanding railway environments.

The LUETZE DIOLINE PLC is a flexible and powerful compact control unit developed exclusively for rail vehicles. Freely programmable in an IEC 61131-3 development environment, it features an integrated L-bus interface for connecting local I/O modules. The DIOLINE PLC can be used for automating simple vehicles, as a subsystem controller, or as a gateway for managing diverse vehicle-specific bus signals.

The LUETZE LION microPLC is a compact and cost-effective logic module designed for decentralized automation tasks in rail vehicle subsystems. It features easy programming through a free PLC project planning tool and offers Ethernet connectivity. With 16 digital and 2 analog inputs as well as 8 digital and 1 analog output, the I/O configuration can be customized to meet application-specific requirements.

The LUETZE LION I/O System (Input Output Network) is designed specifically for rail vehicle applications up to SIL2. Its modular architecture allows flexible configuration by combining diverse modules such as voltage supplies, bus couplers, and digital or analogue modules with safe and non-safe I/Os. Supporting multiple fieldbus interfaces, including MVB, Ethernet, and TRDP, the LION I/O System delivers maximum adaptability for various railway automation tasks.

The LUETZE Train Line Modem (TLM) enables high-speed Ethernet communication up to 950 MBit/s via vehicle couplings or articulations. It utilizes existing cross-vehicle cables such as Zug-NF, IBIS, or other 24V control cables, and can also use unused coupling contacts. Depending on the version, the TLM provides a rail-approved M12D or x-coded connector for integration into the vehicle network. Once installed, the system requires no further commissioning or configuration, as MAC and IP settings are not needed. Transmission and receiving outputs can be configured to bridge both long and short distances effectively.

LUETZE relays are available with either pluggable or fixed-installed designs, each featuring a changeover contact. Using top connection spring terminal technology, wiring is simple and efficient. Each connection also includes a contact for jumper combs, enabling easy linking of switching groups or potential levels. This ensures clear, reliable wiring. The relays are available for all operating voltages commonly used in rail technology.

The LUETZE LOCC-Box Rail is an electronic circuit protection solution for rail applications, offering adjustable rated current and configurable tripping characteristics. Designed for reliable operation in demanding environments, it provides intelligent monitoring, status indication, and communication options, ensuring safe and efficient power distribution in railway systems.

The LUETZE LUNA is an intelligent control system for 2-pole switching and load monitoring of 24 V actuators. It provides adjustable current ranges up to 10 A with configurable tripping characteristics from fast-acting to super slow. Each module includes 2 channels and supports permanent transmission of diagnostic data. Designed for railway applications, LUNA connects to the vehicle control unit via Ethernet TRDP and is available as a compact module with 6 or 11 slots.

The LUETZE Logic Modules enable the realization of logic operations with or without software. Featuring 8 digital potential-free wide-range inputs with individually selectable thresholds (9 V / 33 V) for nominal voltage DC 24–110 V, and 4 digital potential-free wide-range outputs with short-circuit protection, they offer flexible control. With a maximum output current of 2 A, wide-range supply voltage of DC 24–110 V, and status LEDs for each input and output, the modules ensure reliable monitoring and operation in demanding railway environments.

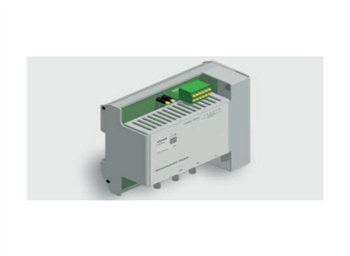

The LUETZE MTB-Module is designed for the reliable control of two magnetic track brakes in railway and industrial applications. Operating with a DC 24 V supply, it supports high switching currents of 2 × 45 A. The module provides current monitoring with galvanic isolated status feedback, ensuring safe and efficient brake control.
