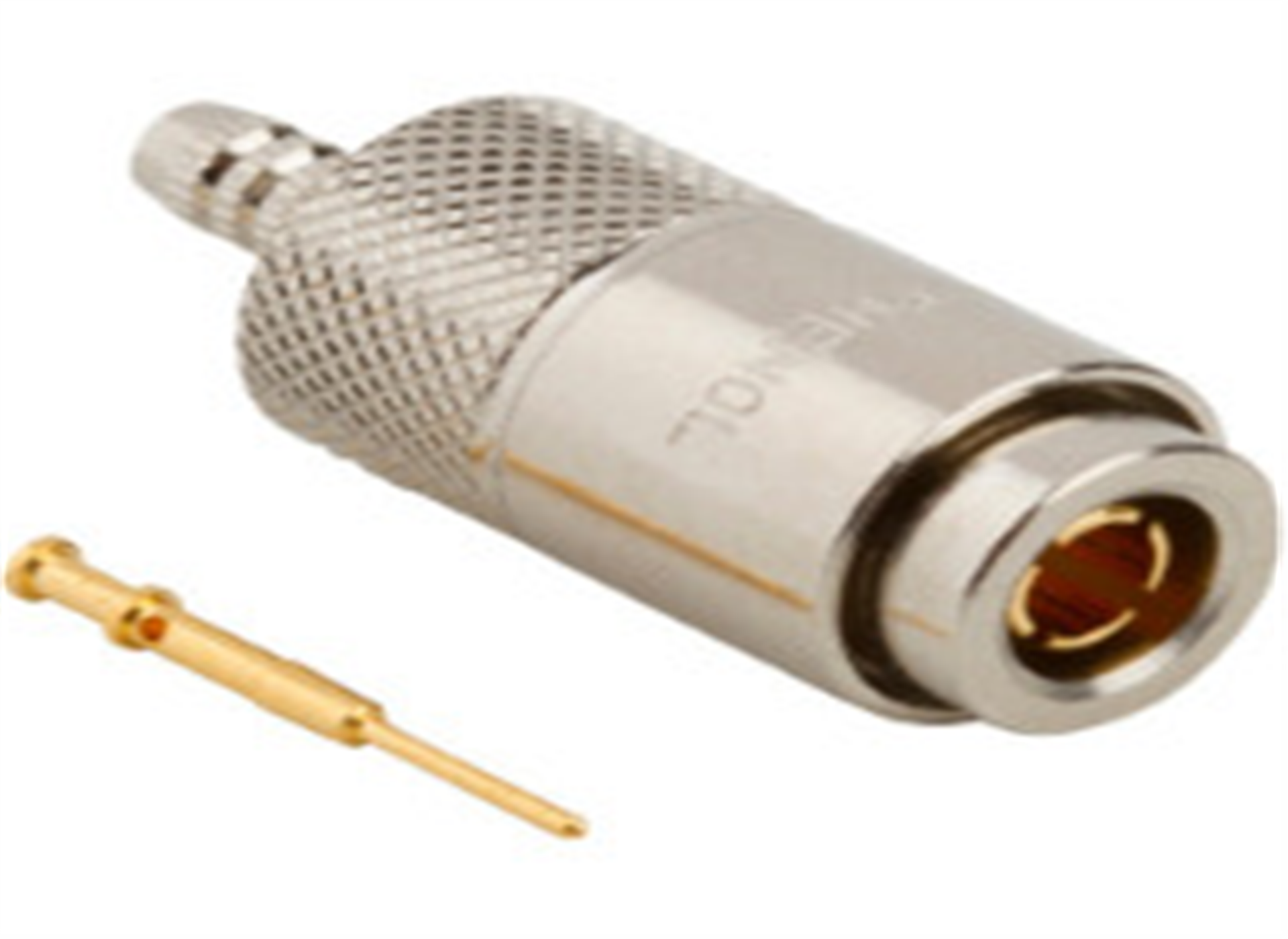

DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz as well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high density digital broadcast formats. The DIN 1.0-2.3 connector series complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.
The Amphenol version features a patented ultra-slim push-pull coupling system which allows quick installation and ensures positive locking and high retention.
FEATURES AND BENEFITS
- Patented push-pull coupling mechanism
- Quick connect and disconnect
- Space saving compact design
- Ideal for high vibration applications
