Contacts & Termini

  • 75Ohms Coaxial Contacts

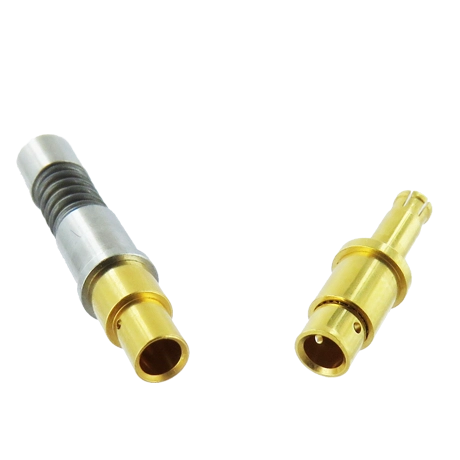

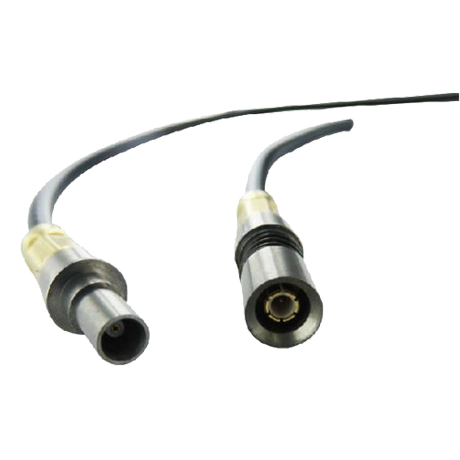

    75Ohms Coaxial Contacts
    75Ohms Coaxial contacts are ideal for video acquisition. This contact range meets the 3G-SDI. Available in Crimp and PC Tails with three different sizes: 6, 8 and 12. This contact range fits within standard cavity of MIL-DTL-D38999/EN3645, SIM/EN4165, ARINC, and 2M.
    More
  • Lux Beam
    Lux Beam
    Lux Beam is a single expanded beam termini compatible with multi-source connectors (38999, EN4165, EN3645). Featuring ball lens technology with an expanded beam superior to 50X in multimode, this solution is ideal for head-up display, tactical communication, avionics communication, equipment with hybrid connection in harsh environments.
    More
  • OCS Oval Contact System
    OCS Oval Contact System
    The OCS (Oval Contact System) is the newest D38999 interconnect product offering from Amphenol High Speed Solutions, it provides many advantages for high speed data transmission.
    More
  • Octonet Contacts
    Octonet Contacts
    Superior Ethernet contact system for MIL-DTL-38999, Series III. Eight strategically spaced inner contacts form four 100 Ohm matched impedance differential pairs. Easy drop-in replacement to installed connectors; no need to redesign. Self-removing contact feature - no extra contact extraction tool needed (24 Gauge only). Octonet Contacts are ideal for Ethernet or AFDX networks with a reduced envelope. This contact range fits within standard size 8 cavity of MIL-DTL-D38999/EN3645, SIM/EN4165,ARINC.
    More
  • PC Tail Coax, Twinax, Triax Contacts
    PC Tail Coax, Twinax, Triax Contacts
    PC Tail shielded contacts provide a cost effective packaging solution for limited space applications where connectors are attached to printed circuit boards. High reliability is assured with factory pre-assembled contacts and standardization termination to the board. PC Tail contacts are available for MIL-DTL-38999 Series I and III circular connectors and also for ARINC 404, ARINC 600 and R27 rectangular connectors.
    More
  • Promi
    Promi
    Promi is a miniature optical cable adaptor for reduced space. It features a compact removable splice for easy installation & maintenance, a split nut for easy installation and a boot for sealed connection.
    More
  • Quadrax Contacts
    Quadrax Contacts
    High Speed Quadrax Contacts consist of an outer contact with four inner contacts spaced to form two 100 or 150 Ohm controlled impedance differential pair. Both contacts, when used in Amphenol MIL-DTL-38999 Series III and ARINC type connectors, provide an excellent option for harsh environment applications such as: Ethernet 100 Base-T-100 Ohm, Gigabit Ethernet 1000 Base-T-100 Ohm, Fibre Channel-150 Ohm, IEEE 1394B FireWire-110 Ohm. Used in MIL-DTL-38999/EN3645, SIM/EN4165 and ARINC600 connectors.
    More
  • Signal and Power Contacts
    Signal and Power Contacts
    Featuring several terminations (Crimp, Solder, PC Tail, Compliant pins), the signal contacts are ideal for MIL-DTL-38999/EN3645/2M, SIM/EN4165, EN2997, ARINC600 or even relay sockets. They're in accordance with the latest standards (European - EN3155)
    More
  • Split-Pair Quadrax Contacts
    Split-Pair Quadrax Contacts
    Amphenol offers the high performance interconnect solution for CAT6A type cable. For use with: 10/100/1000/10G Base-T Ethernet; DVI; USB 2.0/3.0; PCI-Express 2.0; HDMI 1.3a; SATA 2.0
    More
  • Triax Contacts
    Triax Contacts
    Provide additional shielding when terminated to triax cable having solid or stranded center conductors. Amphenol supplies triax contacts in sizes 8, 10 and 12 and they are ideally suited for use in D38999 Series I, II and III circular connectors.
    More
