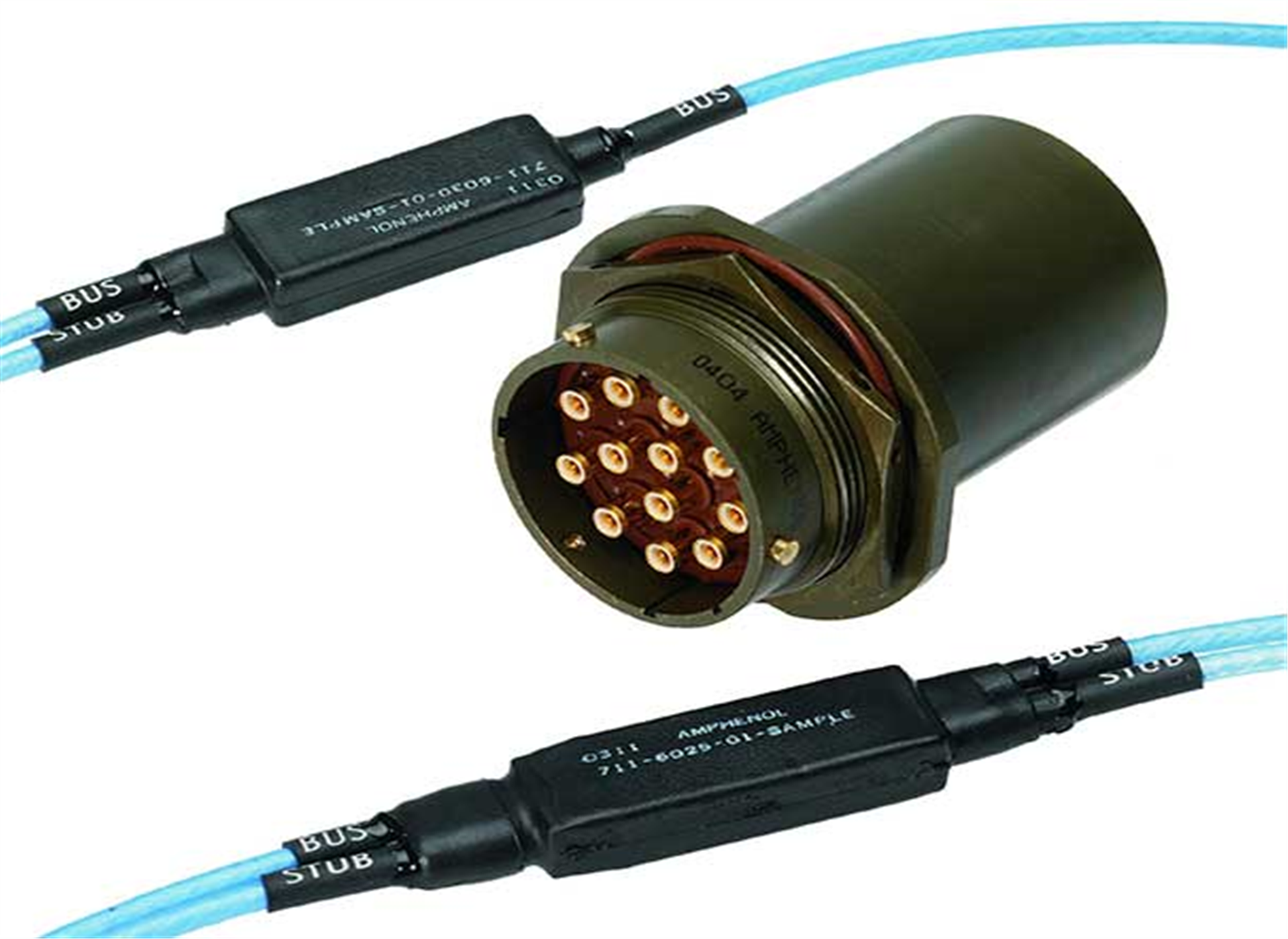

Amphenol offers a wide range of couplers for transformer-based coupling between the MIL-STD-1553 (Def Stan 00-18, Part 2) data bus and single, dual, or multiple remote terminals (RTs). The integrated transformers and insulation resistors are housed in a continuous shield that provides both electromagnetic and environmental protection. Our MIL-STD-1553B data bus couplers are designed for aircraft avionics applications and are approved according to PAN6465/JN1042 and JN1052. The product range includes: RT couplers with connecting leads (e.g., 711-6116) – ideal for applications with space and weight restrictions, such as in aviation. RT-Can coupler – for switchboards and control boxes with multiple couplers in a confined space Data bus coupler RT coupler with connecting leads or as an RT-CAN coupler Meets the requirements of MIL-STD-1553B Compatible with 711 or Mil-DTL-38999 III connectors Data bus coupler with EMI/RFI protection, data transmission, signal transmission. Bayonet, Tri-Start thread. Aerospace, defense, marine.
FEATURES AND BENEFITS
Transformer turns ratio: 1:√2, series resistance: 57 ohms, characteristic impedance: 77.05 ohms. Conforms to MIL-STD-1553B. Fully sealed. Fluid resistant to aviation fuels, lubricants, hydraulic, brake, and auxiliary fluids. Compatible with the 711 series connectors. Size 8 contacts allow use in MIL-C-38999 Series III connectors / #8 Twinax M39029/90-529 and 91-530, coaxial contacts in #8, #12, and #16. Cable conforms to MIL-C-17/176. EMI/RFI protection. Operating temperature range: -55°C to +125°C. Data bus coupler
