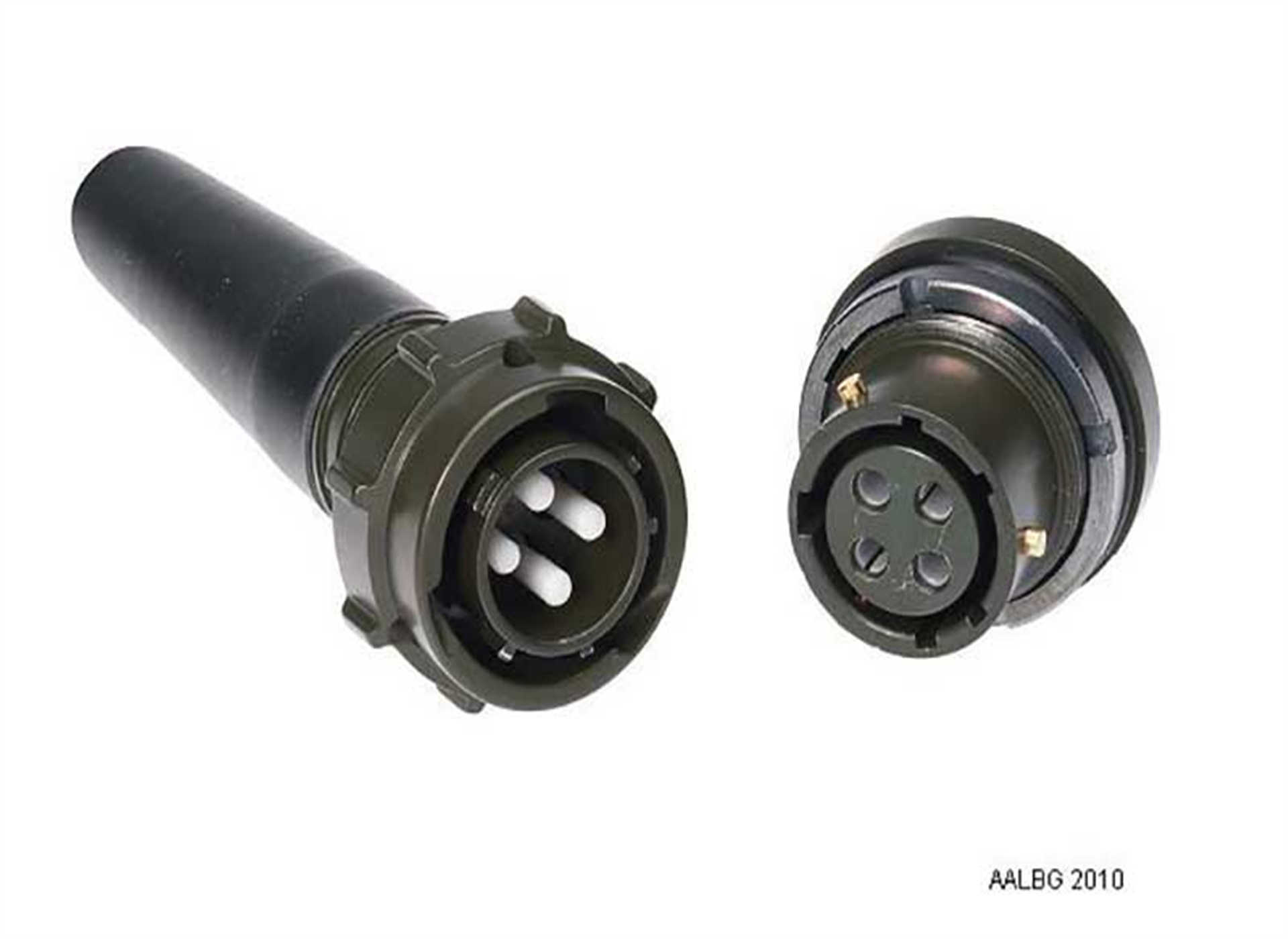

MIL-DTL-26482 based / BDC | BQC
The BDC series is designed for multimode duplex cables with a tight jacket and is available for 2 to 4 channels. The 3-pin bayonet-locking connectors feature a smaller and lighter housing based on MIL-DTL-26482. BDC connectors come standard with 2.5 mm zirconia-PC ceramic ferrules and guide sleeves.
FEATURES AND BENEFITS
Robust circular connector bayonet locking mechanism Fiber-optic data transmission BDC: 2 channels per connector BQC: 4 channels per connector For cable sizes 62.5/125 and 50/125 Circular connector for data transmission, fiber optic technology, bayonet defense, 2 or 4 channel version for multimode, bayonet locking with min. 500 mating cycles, input attenuation -0.25dB@1300nm, protection class: IP68, operating temperature range: -55°C to +125°C, for use with a shrink-fit component or available as pre-assembled modules with overmolding.
