These high-quality Micro-D connectors offer proven performance and reliability to military standards in rectangular D-, stripline, and custom designs. The precision contacts ensure top-quality mating and unmating, as well as very low contact resistance. The connectors are MIL-DTL-83513 approved. Micro rectangular connectors Micro D-SUB connector Signal and data transmission 9 to 100 contacts per connector Max. 3A current per contact metal or plastic Rectangular connectors, trapezoidal connectors (D-SUB) for data transmission, EMI/RFI protection, filter connectors, PCB connectors, signal transmission.
FEATURES AND BENEFITS

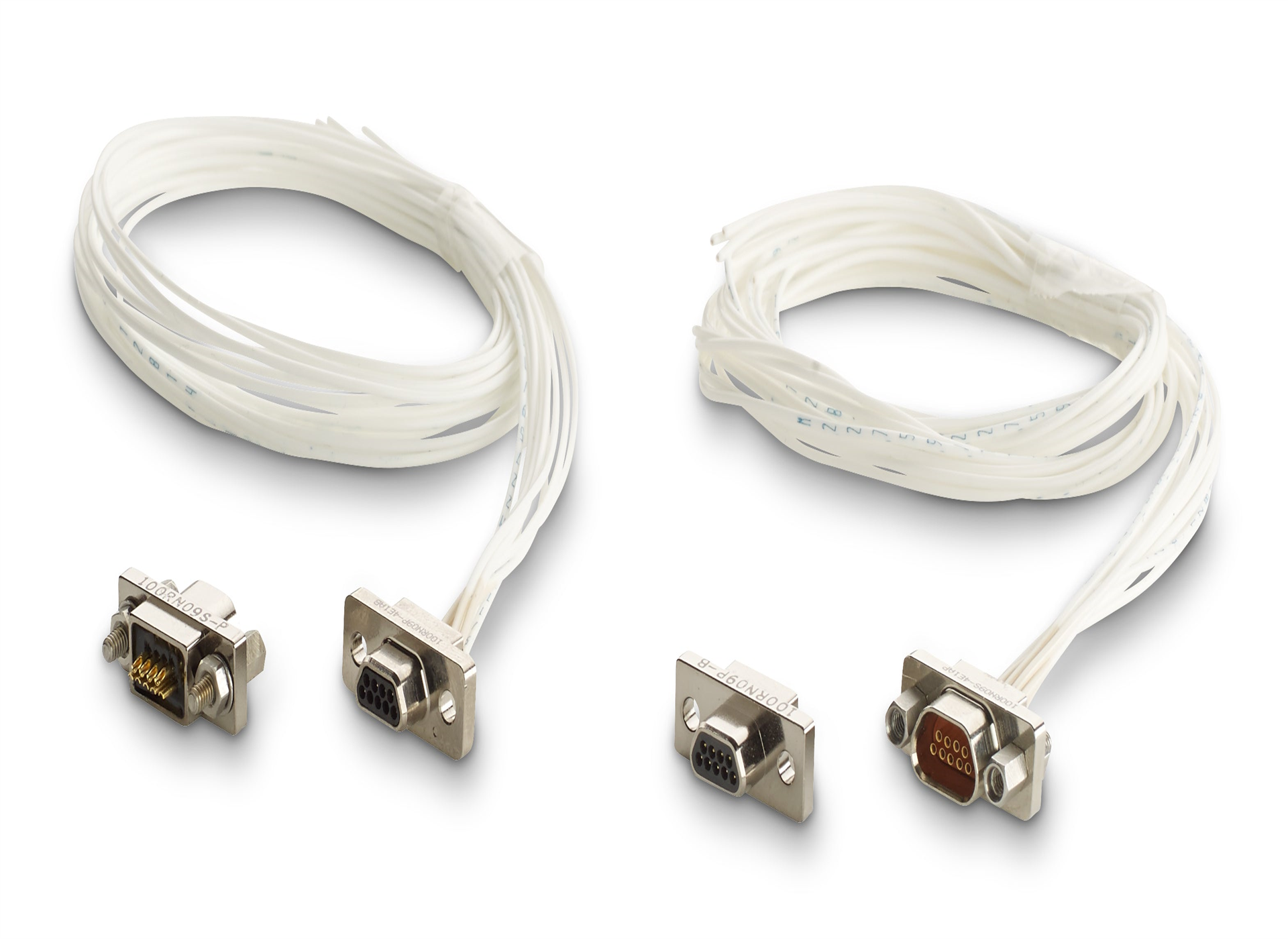

D-SUB applications include defense, aviation, aerospace, urban air mobility, and unmanned systems. Rectangular and trapezoidal connectors for signal and data transmission conform to M83513 specifications. High-density and filter versions are available, along with EMI end housings and other accessories. A wide range of designs and custom solutions are available. Operating temperature range: -55°C to +125°C. Contact options include crimp (AWG 24-32), solder, straight or angled PCB contacts, fiber optic terminals, and power and coaxial contact options. Miniature connectors are also available pre-wired.
