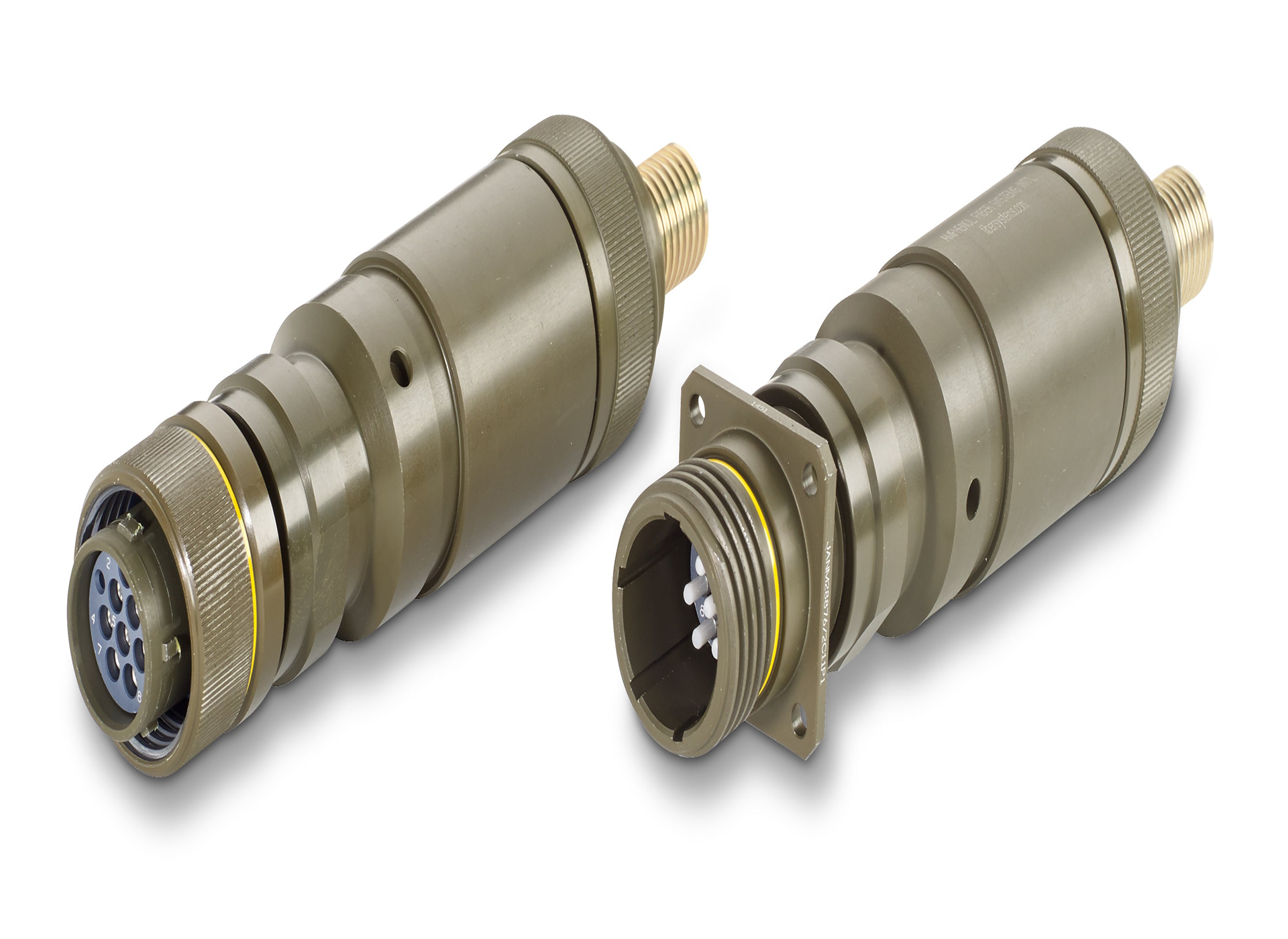

This multi-channel fiber optic connector has already proven itself in many field applications in harsh environments and is suitable for both multimode and single-mode applications. The end housings are equipped with a QuickLock fastening system. This system is not only easy to install, but also allows for the simple removal and re-insertion of the aramid yarn from the cable without shortening the cable. The QuickLock end housing also provides easy access for maintenance or reconfiguration of the connectors without altering the aramid fiber.
FEATURES AND BENEFITS
Robust circular connector Tri-Start locking mechanism Fiber-optic data transmission 4 to 31 channels per connector Multi- or single-mode Compatible with M29504/14 and /15 terminals QuickLock Backshells: Easy and quick maintenance and repair Circular connector for data transmission, fiber optic technology, tri-start thread, defense, marine. Qualified to MIL-PRF-28876 specifications. Low input loss (-0.35dB typ MM, -0.35dB typ SM). Compatible with single-mode or multi-mode terminals. Available in 3 sizes, 4 to 31 channels. Low maintenance in the field according to MIL-STD-2042. Works with all qualified single-mode or multi-mode M29504/14 and /15 terminals. The backshell design allows for simplified, removable aramid yarn attachment without mechanical crimp rings.
